PRODUCT

Products & Services

HOME > Products & Services > Discrete Products > Multi-Function Transistor (MFT)

Module Products
Discrete Products
MFT
Transistor, Diode
Analog IC

Multi-Function Transistor (MFT)

  • What is MFT?
  • Package Outline
  • Core-Chip Series
  • Approach for MFT
  • Example of Single Function
  • Example of Multi-function Circuit

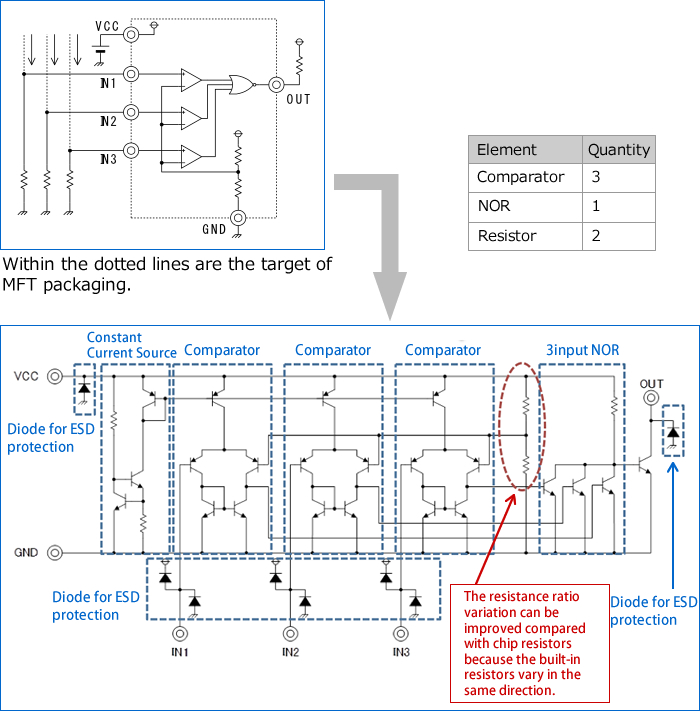

Example of Multi-function Circuit

Detector circuit of over



ElementQuantity
Terminal6
NPN(1S)11
NPN(12S)1
PNP(1S)8
Resistor(15kΩ)22
Electrical characteristics(Ta=25℃、VCC=5V)
Parameter Conditions Limit Unit
Min. Typ. Max.
Operating supply voltage range     5   V
Internal Consumption current IN1~3=GND   0.36   mA
Input threshold voltage     0.46   V
Output saturation voltage IOUT=5mA   0.30   V
Rising delay time     0.7   us
Falling delay time     0.3   us
