Discrete Products Design Support tool
Package specifications
SC-59 Package
PDF
SC-70 Package
PDF
SC-75A Package
PDF
SOT-89 Package
PDF
SC-88 Package
PDF
SC-88A Package
PDF
TO-92S Package
PDF
※Please click each item, and you can see details in PDF file

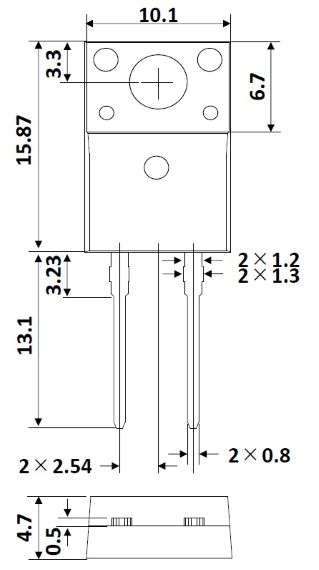

Package list (Unit : mm)
JEITA : SC-59
ISAHAYA : CTR
JEITA : SC-70
ISAHAYA : SMTR
JEITA : SC-75A
ISAHAYA : USM

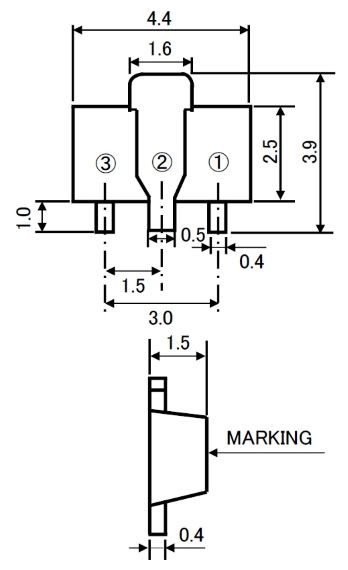

JEITA : SC-62 JEDEC : SOT-89
ISAHAYA : -

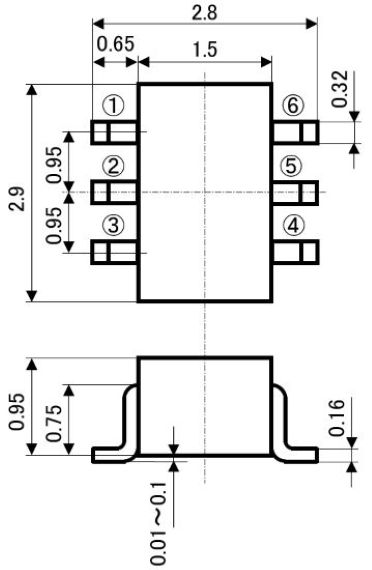

JEITA : SC-74
ISAHAYA : CTR6

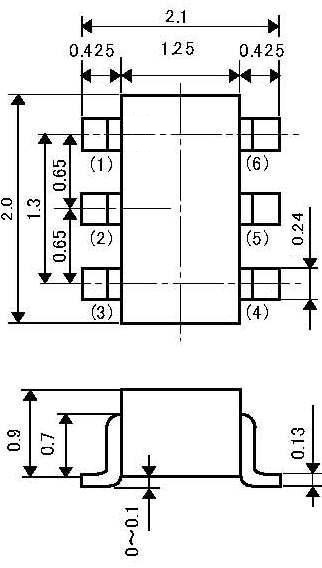

JEITA : SC-88
ISAHAYA : SMTR6
JEITA : SC-88A
ISAHAYA : SMTR5
JEITA : -
ISAHAYA : MICRO

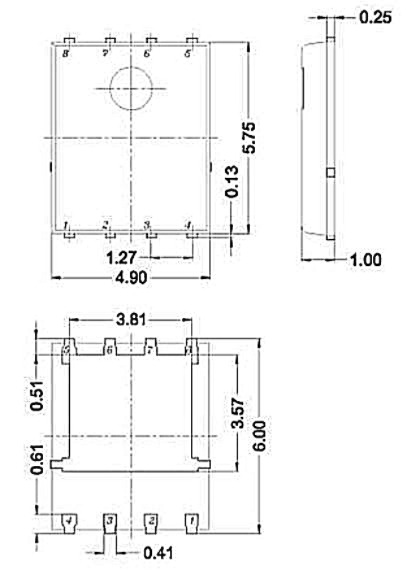

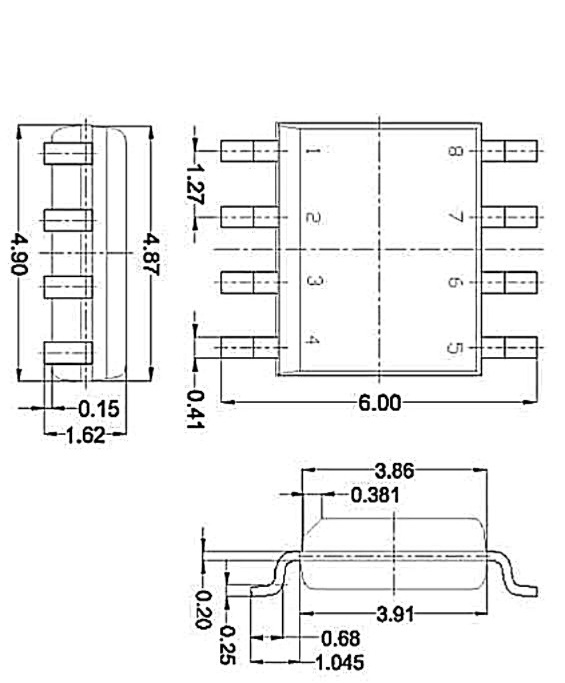

JEITA : -
ISAHAYA : TMSOP8
Recomended Mount Pad (Unit : mm)
JEITA : SC-59
ISAHAYA : CTR
JEITA : SC-70
ISAHAYA : SMTR
JEITA : SC-75A
ISAHAYA : USM
JEITA : SC-62,JEDEC : SOT-89
ISAHAYA : -
JEITA : SC-74
ISAHAYA : CTR6
JEITA : SC-88
ISAHAYA : SMTR6
JEITA : SC-88A
ISAHAYA : SMTR5
Mounting Method
PDF
Matters to be attended to
1.Storage and handling instructions
PDF
2.Precautions for use (lead bending)
PDF
3.Precautions for Avoiding Static Electricity
PDF
4.Things to be aware of when using ISAHAYA Transistor (BIP Transistor)
PDF
5.Things to be aware of when using ISAHAYA Transistor (MOSFET)
PDF
